Flying Wing CG Calculator
Aerodynamic Center (AC), Mean Aerodynamic Chord (MAC), Center of Gravity (CG) and Wing Area

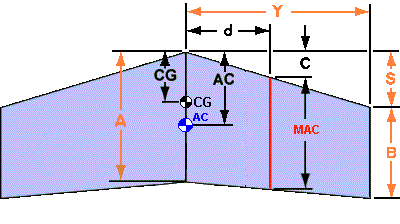

Wing Root Chord (A):
Wing Tip Chord (B):
Wing Half Span (Y):
Wing Sweep (S):
Dist Deg
Enter Static Margin, then
%
Mean Aerodynamic Chord MAC =
Sweep Distance at MAC (C) =
From Root Chord to MAC (d) =
From Wing Root LE to AC =
From Wing Root LE to CG =
Wing Area =
Wing Aspect Ratio =
    Enter the variables at left using the same units for all entries.
    For a wing to be stable in pitch, its CG must be forward of the
    Aerodynamic Center AC by a safety factor called Static Margin,
    which is a percentage of the MAC (Mean Aerodynamic Chord).
    Static Margin should be between 1% and 10% for a good stability.

    Low Static Margin gives less static stability but greater elevator
    authority, whereas a higher Static Margin results in greater static
    stability but reduces elevator authority. Recommended Static Margin:
    10% for beginners, 5% for intermediate level and 1% for experts.

    For wings with two different panels click here
Calculate Wing Loading
Wing Area :  sq. in
sq. dm
Aircraft Weight :  ounces
grams
Max Lift Coefficient :  Max Cl.
WING LOADING :  oz/sq.ft
g/sq.dm
CUBIC LOADING :  oz/cubic.ft
STALL SPEED :  mph
Km/h
